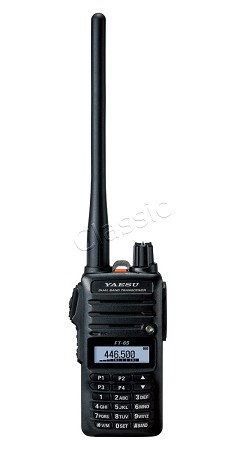

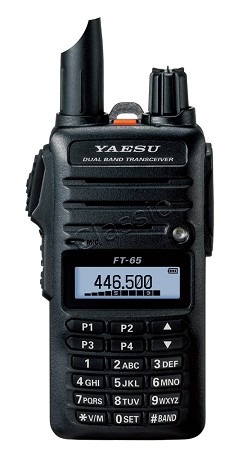

The FT-65E is a compact rugged VHF/UHF 2 m/70 cm dualband FM handheld transceiver constructed to meet commerical grade specifications. It is packed with high performance and valuable features demanded by radio operators around the world.
Features
- Compact Design measuring W 52.5 x H 104.5 x D 31mm
- 5 Watts of reliable RF power within a compact body
- Three selectable power settings from 0.5W LOW ; 1.0W MIDDLE to 5.0W HIGH
- One Watt Audio power output for clear audio from 36mm Front facing speaker
- Rugged Construciton Meets IP54 and MIL-810-C,D and E
- QRK (Quick Recall Key) Four programmable Keys for Quick access to favourite funtions.
- Over 9 Hours operating time from supplied 1950 mAh (SBR-25Li) Li-Ion Battery Pack (6:6:48)
- Optional 2500mAh High Capacity Battery available (SBR-26Li) provides over 11,5 hrs Extended Operating Time (6:6:48)
- 3.5 hr Rapid Charge (SBH-22) supplied with radio
- Large White LED Flashlight with Alarm and Quick Home Channels access for Emergency signalling
- Versatile Scanning modes ( Progrfammed VFO Scan, Memory Scan, Priority Scan)
- VOX operation with optional VOX earpiece microphone (SSM-512B)
- PC Programmable with Optional PC Programmng Cable SCU-35)
- Transceive to Transceiver cloning with Cloning Cable (SCU-36)
- FM Broadcast Receiver
- ARTS ( Automatic Range Transponder System) for alertng users when out of range
- DTMF Signalling
- CTCSS/ DSC Signalling
- BCLO (Busy Channel Lockout ) prevent transmission when channel is busy
- Battery Save function
- Automatic Power Off (APO) feature
- TX Time Out Timer
Specifications
General
| Frequency Ranges | : | RX 136-174 MHz / 400-480 MHz | FM Broadcast 65-108 MHz | TX 144-146 MHz/430-440 MHz |
| Channel Steps | : | 5/10/12.5/15/20/25/50/100kHz |
| Frequency Stability | : | ±5ppm @ -10ºC to +60ºC |
| Repeater Shift | : | ±600kHz (144MHz), ±1.6/7.6MHz (430MHz) |
| Emission Type | : | F2D, F3E |
| Antenna Impedance | : | 50 Ohm |
| Supply Voltage | : | Nominal 7.4V DC, Negative Ground |
| Current Consumption | : | 205mA (Receive) 200mW Output | 1.5A (5W TX, 144 MHz) | 1.7A (5W TX, 430 MHz) |
| Operating Temperature | : | -20ºC to +60ºC |
| Case Size | : | B52,5 x H104,5 x D31,0 mm |
| Weight | : | approx.260 g with SBR-25Li and antenna |
Transmitter
| RF Power Output | : | approx. 5.0W (High), 2.5W (Middle), 0.5W (Low) |
| Modulation Type | : | Variable Reactance (F2D, F3E) |
| Maximum Deviation | : | ±5.0kHz (F2D, F3E) |
| Spurious Emission | : | at least 60dB down (Hi & Middle power) | at least 40dB down (Low power) |
Receiver
| Circuit Type | : | Diirect Conversion |
| Sensitivity | : | 0.2µV for 12dB SINAD (140 - 150MHz, NFM) | 0.2µV for 12dB SINAD (420 - 470MHz, NFM) |
| Selectivity | : | 12 kHz/35 kHz (-6dB/-60dB) |
| AF Output | : | Max. power 1W @ 16O, 0.8W @16O for 10% THD |
The
FT-65E comes with:
- Li-Ion Battery SBR-25Li 7.4 VDC @1950mAh

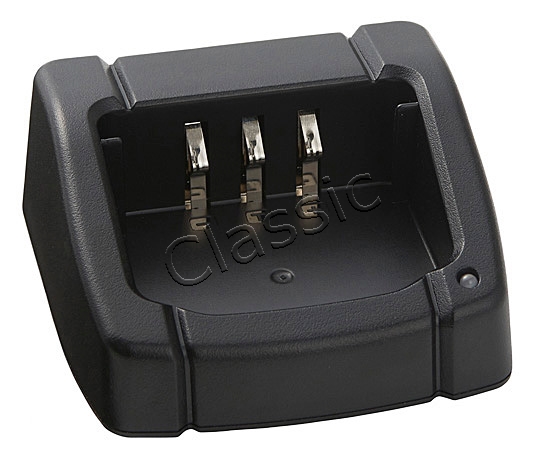

- Rapid Charger SBH-22
- AC Adaptor SAD-20C/U
- Belt Clip SHB-18
- Antenna with SMA-female connector
Download the brochure for additional information.
