The 4 ele. UltraBeam 6-20 utilizes four Motor Units driving a dual Variable Reeling System sliding up and down inside two halfes of telescopic fiber glass tubes acting as a full size half wave dipole, refelector and two director elements on any frequency in the range of 14-50 MHz.
The Antenna Controller equipped with a quatriple motor driver board and dedicated powerfull software will match the 4 ele. UltraBeam 6-20 instantly to 50 ohm coaxial transmission line.
Motor Unit of the driven element does have an integrated efficient high power 2:1 Balun.
The 4 ele. UltraBeam 6-20 self-supporting, dynamic tunable beam that operates on all frequencies in the range of 14-50 MHz does not require safety guy wires.
All prefabricated control cables have multi-pin IP-68 waterproof connectors and do not require extra sealing.
Field firmware updates available at UltraBeam online download area.
Technische Daten
| Frequenzbereich | : | 14-50 MHz |
| Anzahl Elementen | : | 4 |
| Gain | : | 10-20 m. - 8 dBd |
| V/R Verhältnis | : | 10-20 m. - 25 dB |
| Aktiv Elemente | : | 10-20 m. - 4 |

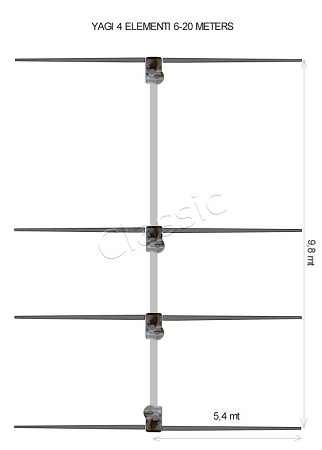

| Boomlänge | : | 9,7 m. |
| Boom Durchmesser | : | 60 x 60 mm quadratisch |
| Max. Elementlänge | : | 11 m. |
| Windlast | : | 0,95 m2 |
| Anschluß | : | SO 239 |
| Mastdurchmesser | : | 50-60-65 mm |
| Max. Leistung | : | 3 kW CW | 5 kW PEP |
| Gewicht | : | 41 kg |
Balun, Antenne Controller und 30 m. Steuerkabel sind im Lieferumfang enthalten. Längeres Anschlusskabel auf Anfrage.
Maße und Gewicht sind inklusive Verpackung
| Maße Paket 1 |
: |
L176 x B27 x D35 cm |
| Maße Paket 2 |
: |
L200 x B25 x D25 cm |
| Gesamtgewicht |
: |
65,00 kg |
