YAESU FT-5DE

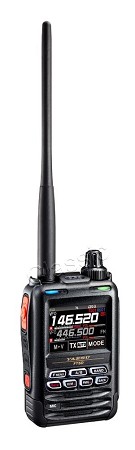

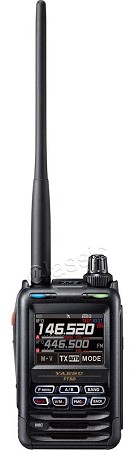

Yaesu FT-5DE C4FM 144/430MHz Dual Band Digital Handheld transceiver.

This new Yaesu FT-5DE is a compact VHF / UHF Dual Band Digital FM radio with a wide range general coverage receiver, a full color TFT and touch panel display and unprecedented features! Equipped with AMS (automatic mode select) APRS, C4FM, WIRES-X, GPS and Bluetooth. With the optinal MH-85A11U equipped with camera, you can quickly take a snapshot that appears on the display or can be forwarded to your friend. Recordings and playback via a micro SD card. You work completely hands-free with the optional SSM-BT10 Bluetooth headset in VOX mode.

Extras im Vergleich zum FT-3DE

• Stoßfestes Gehäuse durch umlaufenden Gummischutz
• IPX7 wasserdicht
• 1 Watt Audioleistung
• Verbesserte Empfindlichkeit und Selektivität
• Echtzeit-Dualband und gleichzeitiger C4FM/C4FM-Empfang
• Gleichzeitiger AM- und FM-Radioempfang
• Verbesserter Bandscope, überwachte 79 Kanäle
• Einrichtung eines tragbaren digitalen Knotens mit PC, Internet und SCU-39

Features

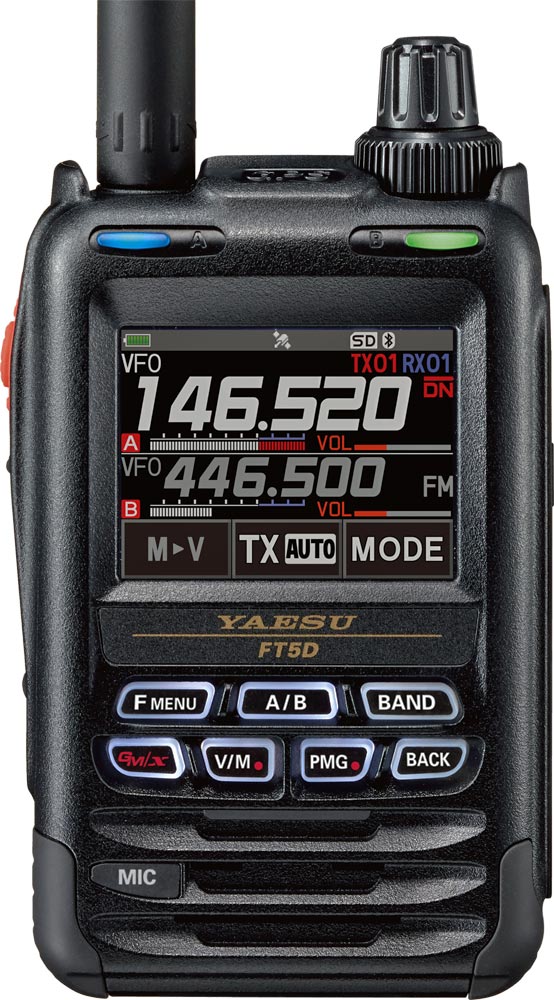

• High-Resolution Full-Color TFT & Touch Panel Display
• Compact & Reliable 5 Watt Power Output
• 700mW of Exceptional Quality Audio
• Easy Hands-free Operation with Built-in Bluetooth® unit
• Simultaneous C4FM/C4FM Standby
• Real Dual Band Operation (V+V/U+U/V+U/U+V)
• Snapshot Feature (Transmit/Receive Image Data)
• Excellent Feaures of C4FM Digital Communication
• Digital Group Monitor (GM) Function
• Automatic Mode Select
• Smart Navigation Function (Real Time and Backtrack)
• Full-fledged wide-band reception with high sensitivity
• Built-in High Precision GPS Antenna
• 1200/9600 APRS® Data communication
• High-resolution Band scope with fast display
• CAM (Club channel Activity Monitor) function
• Recording Function
• Includes 2.200mAh High-capacity Lithium-ion Battery
• Simultaneous AM/FM broadcast Reception and 2-ch. Monitoring
• Micro SD Card Slot

Other Features

• Large-capacity 1256ch memory and twenty-four 100ch memeory banks
• Illuminated keyboard
• Dual-axis knob allows volume control and dial operation
• Memory ALPHA TAG up to 16 characters
• Bult-in CTCSS, DCS, Pager (EPCS) function
• DTMF Encode
• DTMF Memory
• ARS (Automatic Repeater Shift)
• Buit-in On/Off Timer, Automatic Power Off (APO) and Time-out Timer (TOT)
• Versatile Scanning
• NOAA Weather alert
• GPS data output feature
• External DC input
• Password Lock function
• Water Protection IPX5 Rating

The Yaesu FT-5DE is supplied with:

• Antenne (SRA-15) - SMA-female connector
• 7.4 V 2,200 mAh Lithium-ion Battery Pack (SBR-14LI)
• Battery Charger adapter (SAD-25)
• Belt Clip with spring (SHB-13)
• Quick Release Holster (SHB-26)
• PC cable USB A/Yaesu Data connector
• Bedienungsanleitung Englisch. Falls erwünscht ist eine Deutsche Anleitung verfügbar. Bitte im Bemerkungenfeld Warenkorb erwähnen.
