ARRL REVIEW QST NOVEMBER 2019
Yaesu FT-DX101 die Nr. 1! auf der Sherwood Liste (
Download Sherwood Receiver Test Daten):
2 kHz RMDR 123dB+
2 kHz BDR 150dB+
2 kHz 3rd IMDR 110dB+
RX phase noise 400 MHz HRDDS -150dBc/Hz
TX phase noise -150dBc/Hz
The new FT-DX101 series HF/6m/4m transceivers with new high performance technology has been introduced and displayed at the Tokyo Ham Fair 2018. The FT-DX101D with 100W output power
FT8/FT4: 40 Watt max!) and FT-DX101MP with 200W output power
FT8/FT4: 80 Watt max!).
Both transceivers share the same core features utilizing the latest SDR Technology.
A few of the extraordinary features are listed below:
- Superb and Astonishing Close-in Dynamic Range Performance even in today's crowded bands situations
- 9 MHz 1F Roofmg Filter Producing Excellent Shape Factor (12 kHz, 3 kHz and 600 Hz for MAIN and SUB receiver)
- 400 MHz HRDDS (High Resolution Direct Digital Synthesizer)
- Hybrid SDR: Direct Sampling & NBW (Narrow Bandwidth) SDR
- Completely Independent Dual Receivers
- High-Q VC Tuning Front-End
- YAESU Renowned Interference Reduction System
- Large Touch-Panel Precision Color Display
- 3DSS (Three Dimension Spectrum Stream) Waterfall Display
- Active Band Indicator with LED illumination of the operating band, enables rapid band changes
- MPVD (Multi-Purpose VFO Outer Dial) provides Sub VFO dial, Clarifier operation, VC-TUNE adjustment, VFO fine tuning or a CS (custom selection) function

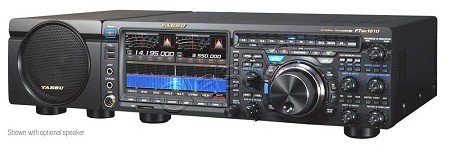

- Lautsprecher SP-101 wie abgebildet ist optional -
Bedienungsanleitung Englisch. Falls erwünscht ist eine Deutsche Anleitung verfügbar. Bitte im Bemerkungenfeld Warenkorb erwähnen.
You will find additional information in brochure for download.
How to enable 70 MHz?
Maße und Gewicht sind inklusive Verpackung
| Maße |
: |
L59 x B59 x H34 cm |
| Gewicht |
: |
21,00 kg |
