ICOM AH-705

The Icom AH-705 matches your IC-705 transceiver to a coax fed or wire antenna of more than 7 m/23 ft long (3.5–54 MHz).

Features

Wide Tuning Range
The AH-705 provides reliable matching from 3.5 MHz to 54 MHz when using at least a 7 m (23 ft) antenna.

Automatic Digital Control Tuning
The built-in 8-bit microprocessor chooses the lowest SWR using more than 1,040,000 different LC (coil/capacitor) combinations.

45 Frequency Memories for Fast Tuning
The LC combinations of 45 previously-used frequencies are automatically memorized. Once a frequency is memorized, the AH-705 tunes on that frequency in less than 1 second. Note that the AH-705 does not memorize a frequency which is normally tuned within 2.5 seconds. Memories are retained only when the power is on.

Weatherproof Design

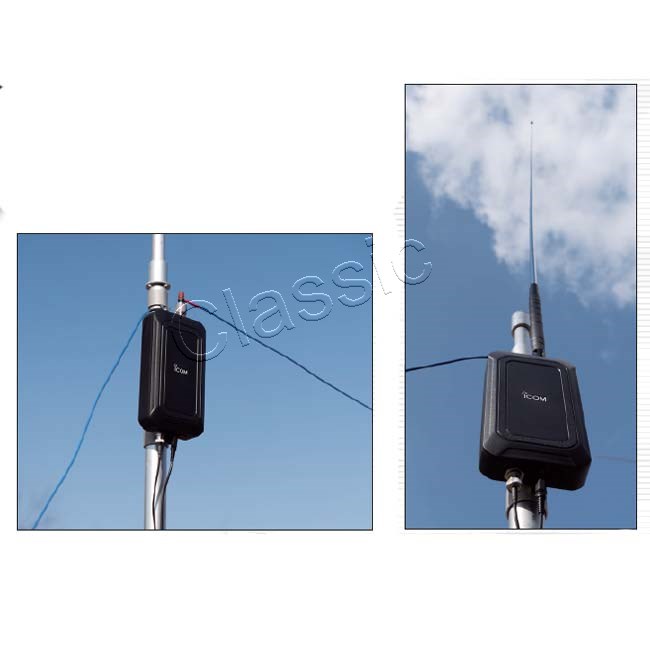

The AH-705’s tightly sealed plastic case allows convenient mounting virtually anywhere. The AH-705 can be mounted outdoors under your antenna. S. images attached.

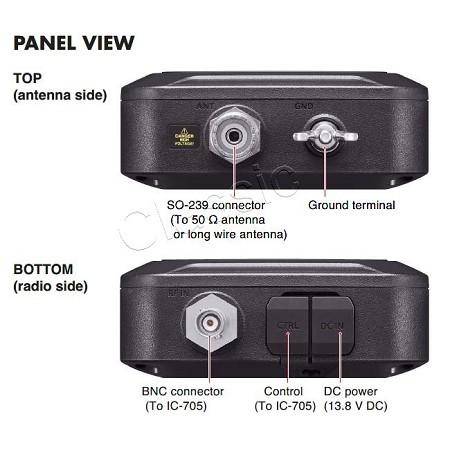

Specifications

Frequency range	:	1.8–54 MHz (with an antenna longer than 30 m; 98 ft)
Frequency range	:	3.5–54 MHz (with an antenna longer than 7 m; 23 ft)
Maximum input power	:	10 W
Input impedance	:	50 Ohm
Tuning power required	:	5 Watt
Rated voltage	:	2 x AA batteries or 13.8 V DC ±15% (current less than 300 mA at tuning; stand-by 1 mA)
Usable temperature	:	–10°C to +60°C (+14°F to +140°F)
VSWR	:	2.0:1 or less (except antennas a one half wave or multiple of a one half wave in length)
Weight	:	approx. 450 gr
Dimensions	:	L190 × W105 × H40 mm (projections not included)

Accessories supplied:

• Mounting bracket incl. screw/washer
• Control cable length 2 m with jackplugs
• Coaxial cable length 2 m with BNC connectors
• DC plug female
• Terminal connector PL > long wire antenne
