The

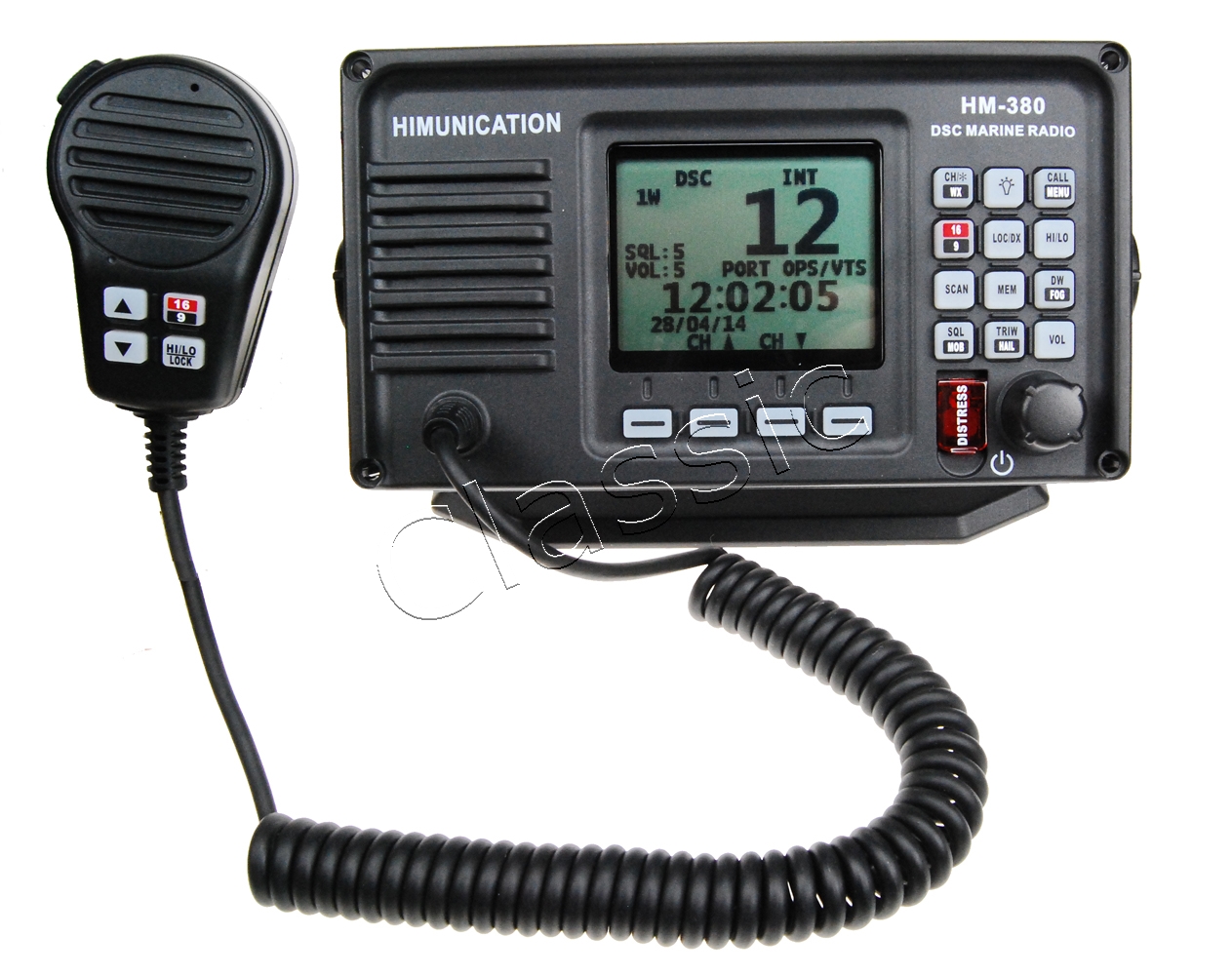

HIMUNICATION HM380 is a compact VHF marine radio, includiing ATIS.
On request we can program ATIS and MMSI data.
Features
- Slim model
- Quick heat dissipation
- Waterproof according to IP67 standard
- Channel 31 (NL) pre-programmed
- ATIS (can be programmed by us)
- LCD-Display with background light
- MOB Alert (Man Overboard)
- Connector for external speaker (3,5 mm)
- Real DSC-Systeem
- GPS receiver; only operates with optional GPS Dongle or external NMEA0183 compatible GPS system

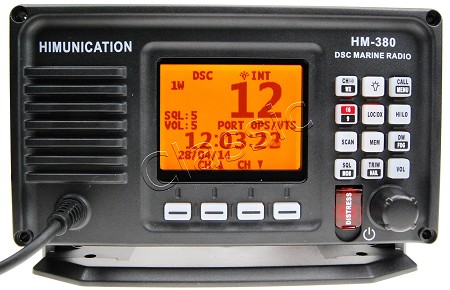

The large LCD with full dot-matrix display of the HIMUNICATION HM380 marine radio clearly shows all data and active functions.
Specifications
| Frequency range TX | : | 156.025 - 157.425 MHz |
| Frequency range RX | : | 156.050 - 162.025 MHz |
| Kanalen | : | 57 internationale |
| Mode | : | FM (16K0G3E) / DSC (16K0G2B) |
| Waterproof | : | According to IP67 standaard |
| ATIS | : | yes |
| MMSI | : | yes |
| Output power | : | High (HI) - 25 W | Low (LO) - 1W |
| Scan function | : | yes |
| Audio-output receiver | : | > 5 W @ 4 Ohm |
| Squelch | : | yes |
| Priority channel | : | yes, channel 9/16 |
| DSC-System – | : | yes |
| Dual Watch Function | : | yes, to monitor channel 16 and current channel in cycle |
| Triple Watch Function | : | yes, to monitor channel 16, current channel and one programmed channel in cycle |
| Keys microphone | : | die most important functions can be chosen on the keypad of the microphone |

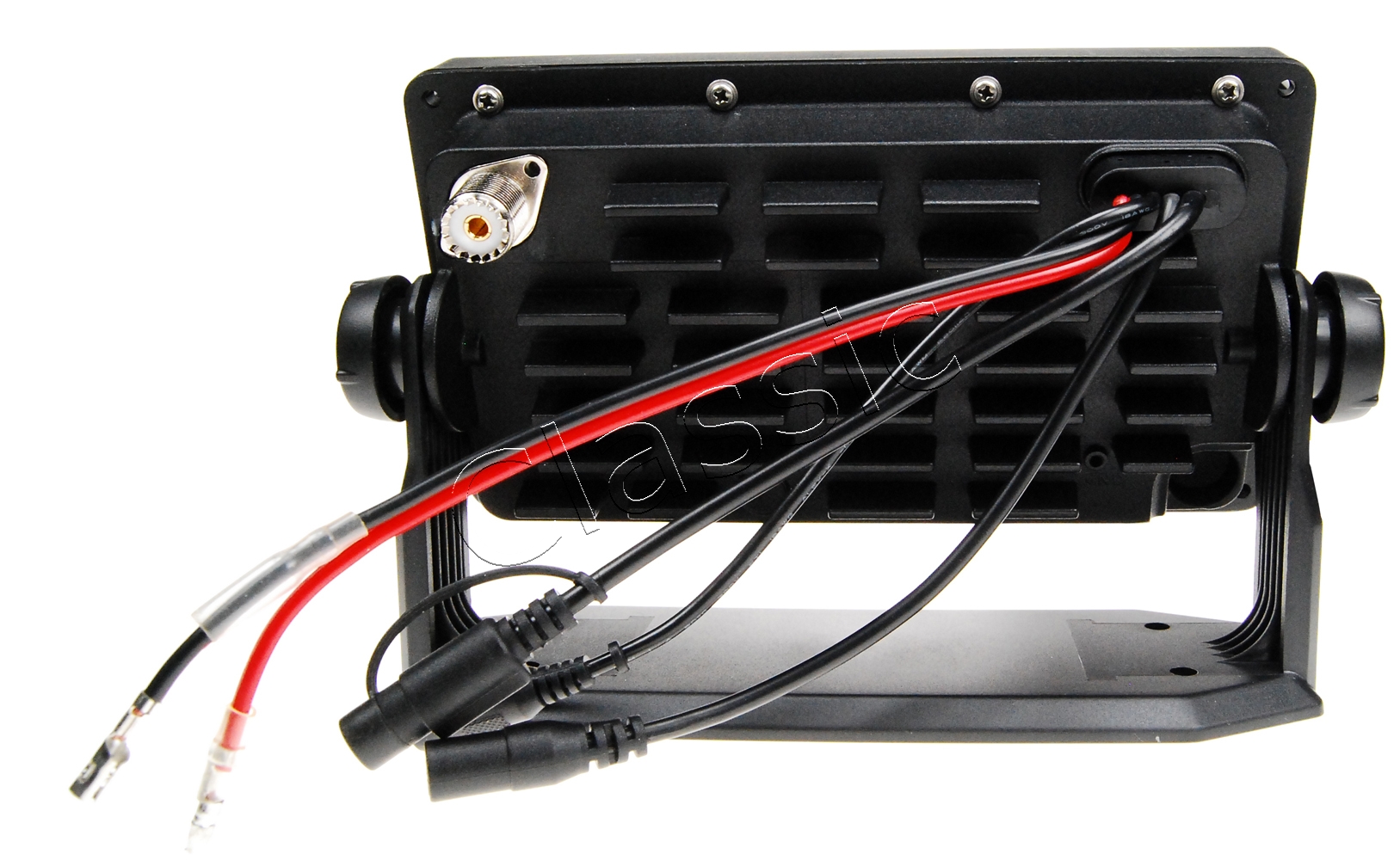

| Connections | : | for external loudspeaker/GPS (3,5 mm Mono/GPS) |
| Ambient temperature | : | -15°C to +55°C |
| Power supply | : | 13,8 VDC |
| Dimensions | : | H 114 x W 224 x D 50 mm (without mounting bracket) |
| Weight | : | 1,5 kg (only radio) |

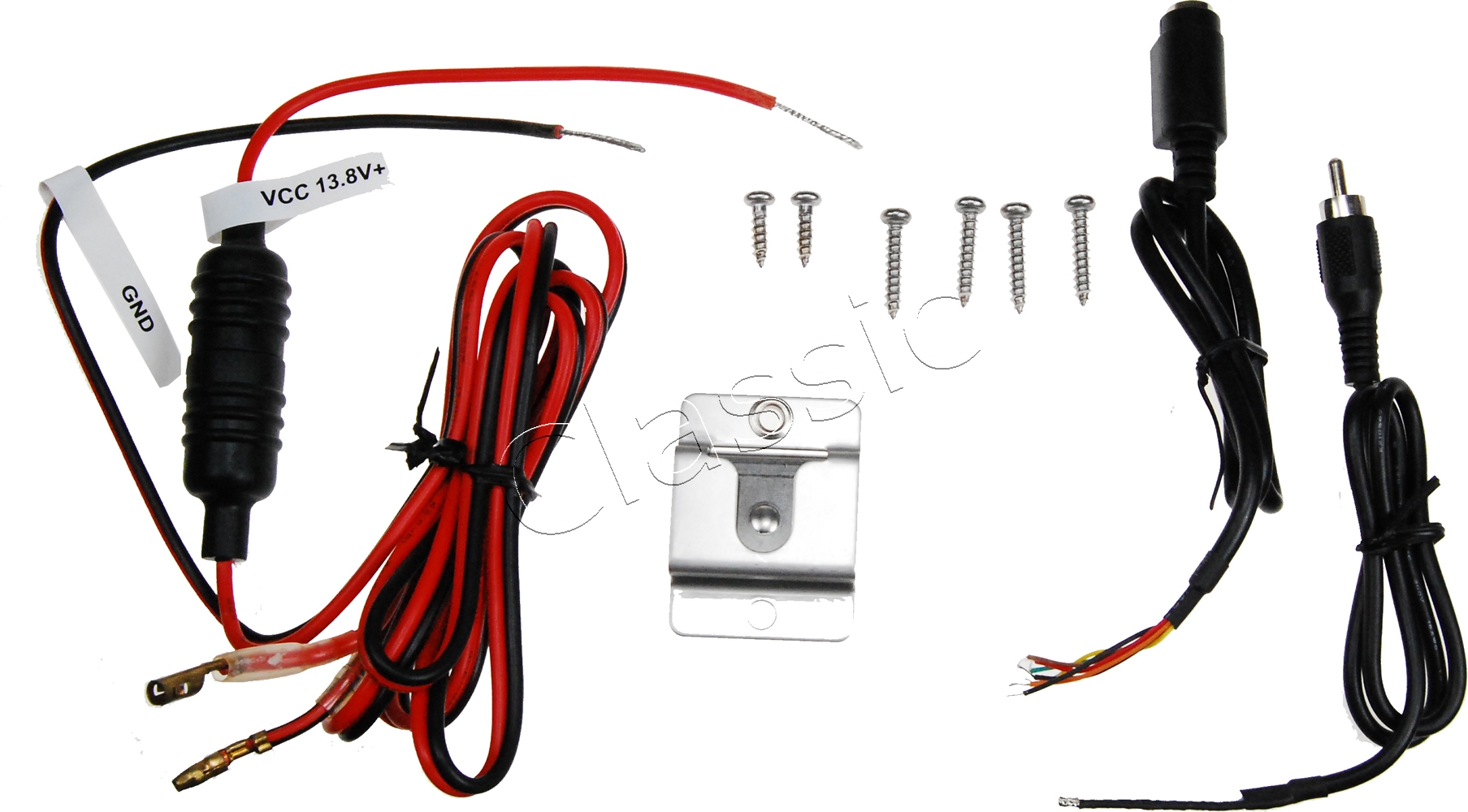

The Himunication HM380 is supplied with:

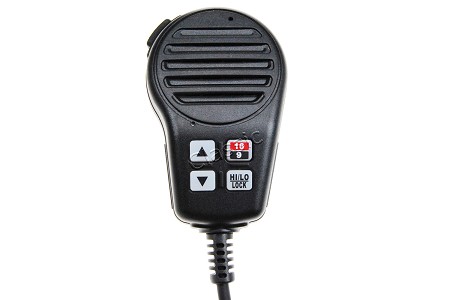

- Microphone
- Microphone holder
- NMEA0183 connectors
- DC cable
- Mounting bracket with screws
- Manual English
Maße und Gewicht sind inklusive Verpackung
| Maße |
: |
L24 x B17 x H6 cm |
| Gewicht |
: |
0,78 kg |
