The professional
WOUXUN KG-D828 is a new
5W/4W VHF/UHF DMR + analogue handheld transceiver with many, innovative functions at an incredible low price ! Including reception of FM broadcast radio.
Combining the latest technology in radio communication along with a sturdy mechanical frame, WOUXUN makes the ideal and effective solution for the professionals who need to stay in touch with colleagues (construction sites, buildings, hotels, trade fairs, shows) or with leisure users that just want to keep up with friends and family.
Specifications
- Frequency range 144-146 MHz / 430-440 MHz; RX: 65-108 MHz (Attention! Is supplied unprogrammed)*
- TX Power (HIGH-LOW): VHF 5W/1W) - UHF (4W/1W)
(*) Maximum transmitter output power in the Amateur bands only
- 3072 Channels, 1024 users, 255 groups, 250 zones
- 16 San lists
- CALL / TOT (Time-Out-Timer) / LOCK / VOX / Dual Watch / Roger Beep
- SCAN and CTCSS/DCS SCAN
- DTMF Signaling / PTT ID
- Selectable RF Power (Hi-Low)
- 50 CTCSS / 106 DCS tones
- Battery Save / Tail Tone Elimination / Emergency Alarm / SOS
- PC programmable (with optional PC cable) | Free software download!
- Dimensions W64 x D41 x H130 mm (with belt clip, without antenna)
- Weight 300 gr.

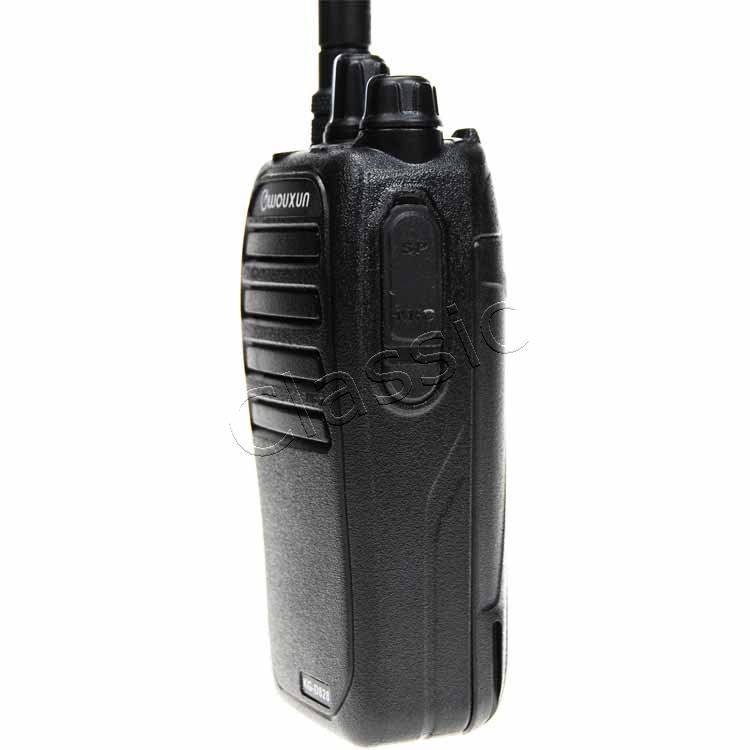

Connector audio accessories: Kenwood Norm; Jackplug 2,5 mm + Jackplug 3,5 mm
Accessories supplied:
- Long Dual Band Removable antenna (21 cm; SMA-female)
- Li-Ion battery 7,4 V/2600 mAh (BLO-016)

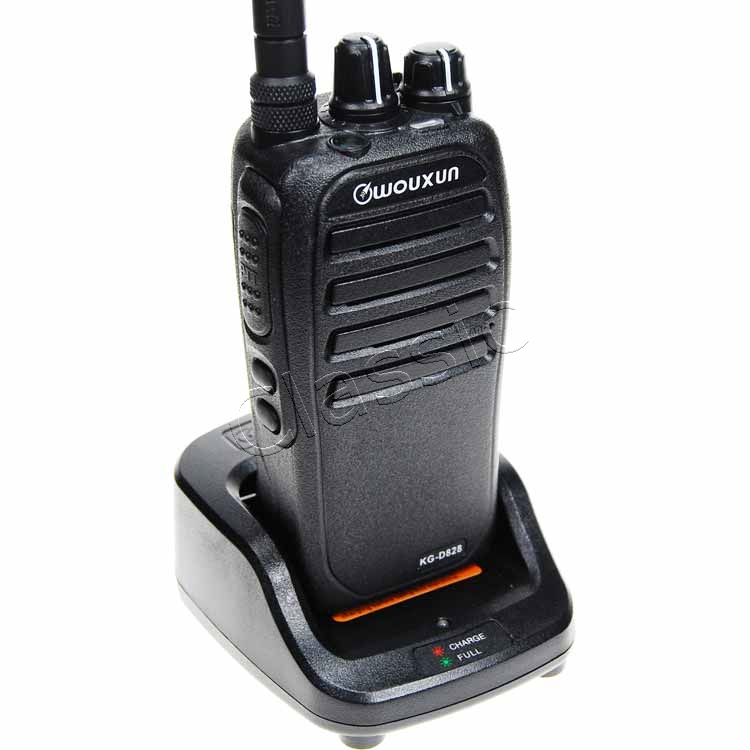

- Desktop charger incl. power supply adapter 220 VAC
- Belt clip
- Hand strap
- Manual English
Attention! The manufacturer strongly recommends using the included antenna only. If other antennas are connected and or high SWR there is a risk of damage to the high power output stage. Such damage is not covered by warranty
*) Programming cable is optional. Software can be downloaded at Wouxun website free of charge.
Maße und Gewicht sind inklusive Verpackung
| Maße |
: |
L28 x B21 x H7 cm |
| Gewicht |
: |
0,61 kg |
