The new

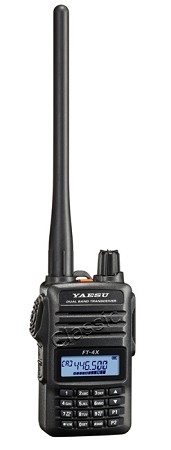

Yaesu FT-4XE is a VHF/UHF Dual Band FM Handheld Transceiver at a very low price!
Features
• VHF/UHF Dual Band FM Handheld Transceiver
• Ultimate Compact Design, Measuring W 52 x H 90 x D 30 mm
• One Watt of Powerful and Clear Audio Output from the 36 mm Front Speaker
• 5 Watts of Reliable RF Power within a Compact body
• Three Selectable TX Power settings (5 W (High)/2.5 W (Middle)/0.5 W (Low))
• Over 15 hours Operating time with Supplied 1,750 mAh Li-ion Battery pack *1
• 3.5-Hour Rapid Charger (SBH-22) Included (Using SBR-28LI)
• QRK (Quick Recall Key): Two User Programmable Keys for Quick Access to Favourite Functions
• One-touch Alarm and Quick HOME Channel Access for Emergency Signalling
• VFO Scan, Memory Scan, Programmable memory scan (PMS), Memory bank scan, and Dual receive
• Large-capacity 200 memory channels
• 3 home channels and 10 pairs of PMS memory channels
• Selectable Frequency Steps (5/10/12.5/15/20/25/50/100 kHz)
• Split Memory - Two different frequencies (TX/RX)
• WX Channels with "Severe Weather" Alert
• VOX Operation with Optional VOX Earpiece Microphone (SSM-512B)
• PC Programmable with Optional Programming Cable (SCU-35) *2
• Transceiver-to-Transceiver Cloning with Optional Cloning Cable (SCU-36)
• FM Broadcast Receiver Equipped
• ARTS (Automatic Range Transponder System)
• DTMF Operation
• CTCSS/DCS Operation
• Busy Channel Lock-Out (BCLO)
• Battery Saver Function
• Automatic Power-Off (APO) Feature
• Transmitter Time-Out-Timer (TOT)
*1 (Tx) 5: (Rx) 5: (Standby) 90 Duty Cycle
*2 Programming software can be downloaded free of charge at Yaesu website
Specifications
| Frequency Ranges RX | : | 136 - 174 MHz + 400 - 480 MHz + FM Broadcast 65 - 108 MHz |
| Frequency Ranges TX | : | 144 - 146 MHz + 430 - 440 MHz |
| Circuit Type | : | Direct-Conversion |
| Modulation Type | : | F2D, F3E, F2A |
| RF Power Output | : | 5 W/2.5 W/0.5 W |
| AF Audio Output | : | 1 W (Max power) |
| Case Size | : | W52 x H90 x D30 mm without Knob |
| Weight (Approx.) | : | 250 g with SBR-28LI and Antenna |
Yaesu FT-4XE handheld is supplied with:
• Antenna (SRA-15) - SMA-female connector
• 7.4 V 1,750 mAh Lithium-ion Battery Pack (SBR-28LI)
• Rapid Charger (SBH-22)
• AC Adapter (SAD-20)
• Belt Clip (SHB-18)
• Operating Manual
Maße und Gewicht sind inklusive Verpackung
| Maße |
: |
L20x B14 x H8 cm |
| Gewicht |
: |
0,61 kg |
